Photocell Sensor for Outdoor Light, 120-277VAC 50/60 Hz Swivel Mount Photocell IP54 Waterproof, Dusk to Dawn Sensor Photoelectric for High Power Loads in Commercial or Industrial(1 Pack)
Product details
| Management number | 211218708 | Release Date | 2026/04/04 | List Price | $5.90 | Model Number | 211218708 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

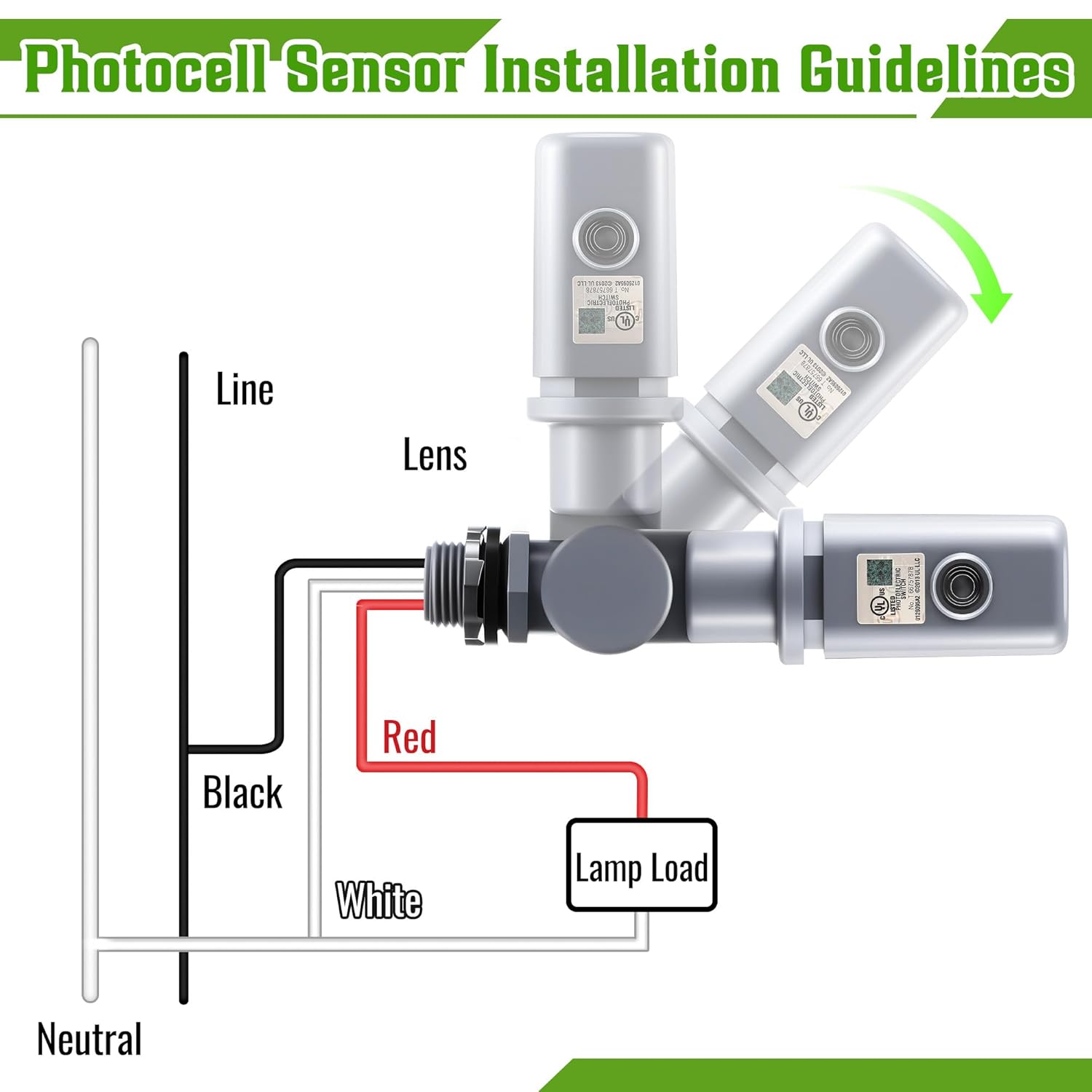

120V-277V Wide VoltageThe rotating outdoor photocell with light adjustment lever features a standard ½-inch thread, Ideal for commercial outdoor lighting such as street lights, parking lots, signs, flood lights, and entryways while also great for residential areas like backyards, garages, porches, patios, and walkways Time Delay FunctionA preset delay of 3–10 seconds helps prevent false activation at night caused by spotlights or lightning. Rotating Photoelectric SensorThe sensor's base rotates 180° for precise positioning and to avoid interference from other light sources. Easy InstallationTurn off the power, remove the junction box cover, insert the sensor through the knockout hole, and secure it with the lock nut. Rotate the base to position the sensor accurately for optimal light detection. Specification: Rated Volts: 120V-277V (Applicable: 105V-305V)Waterproof: IP54Certification: UL CertificationOperating Temperature: -40℃ to +70℃Light Sensor: IR Filter PhototransistorHousing: Anti UV Impact Resistance Polycarbonate(PC) Package Include1 x Photocell Sensor Notes: 1. Do not install the sensor eye facing artificial or reflected light, as this may cause the light to turn on and off repeatedly at night. 2. The sensor's delay function prevents the light from switching off because of passing car headlights or stray light. It is normal for the light to take a few minutes to turn off during initial setup and testing. 3. To test the “ON” function during the day, cover the sensor eye with an opaque material. Do not use your fingers, as light can still pass through and affect the sensor's operation.
- Photocell Specifications: Rated voltage value: 120 volts-277 volts, 50/60 Hz; Rated load: 1800W, 1100VA; Wire gauge: 18 AWG; Installation: Photocells require hardwire installation
- 120V–277V Wide Voltage: You will receive 1 pcs photoelectric sensor for outdoor lights. It supports single or multiple fixtures up to 1800W at 277VAC, and its wide voltage range is ideal for complex commercial and industrial circuits, making it a perfect choice for both traditional HID and modern LED lights
- UL Certification Photocell Light Sensors: Our 120VAC-277VAC photocell light sensors are UL certification with an IP54 waterproof rating to protect the sensor from weather elements such as rain and dust
- Intelligent Photoelectric Sensor: The delay function in the sensor light control prevents the light controller from turning off the lights due to passing car headlights or other stray light
- Convert Fixtures to Automatic On/Off: Dusk to dawn photocell sensors allows your lighting to automatically turn on at dusk and off at dawn; It will automatically turn on when the light level is 10-20 lumens and turn off when the light level reaches 30-60 lumens
| Model | IA-Ceoighe-0387 |
|---|---|
| Brand Name | Ceoighe |
| Unit Count | 1.0 Count |
| Output Type | Analog |
| Manufacturer | Ceoighe |
| Mounting Type | Surface Mount |
| Response Time | 10 seconds |
| Item Dimensions | 4.72 x 1.97 x 0.98 inches |
| Measuring Range | 105V - 305V |
| Included Components | 1 x Photocell Sensor |
| Maximum Supply Voltage | 305 Volts (AC) |
| Upper Temperature Rating | 70 Degrees Celsius |
