Huanyu Four-Point Probe Resistance Tester (DC) Test Sheet Resistance Resistivity of Uniform Rigid Conductive Semiconductor Film ITO FTO AZO Conductive Glass Sheet Metal (DC 220V With 110V Transformer)
$1,369.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by londonwartclinic.co.uk
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$1,369.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by londonwartclinic.co.uk
Free 30-day returns Details
Product details
| Management number | 211159251 | Release Date | 2026/04/04 | List Price | $547.60 | Model Number | 211159251 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Application: Suitable for testing the sheet resistance and resistivity of uniform rigid conductive and semiconductor films, such as ITO conductive glass, FTO conductive glass, AZO conductive glass, flexible ITO conductive films, sheet metal layers
- Note: NOT suitable for testing conductive polymer films or silicon wafers with rough surfaces. If you need to test the resistance of materials such as silicon wafers, nano-silver films, graphene films, carbon paste films, confirm with us in advance
- Voltage: The voltage of the Tester is 220V! We recommend that you use it in a 220V voltage as much as possible. Then no transformer is required. But if you need to use the it in a 110V voltage, please use the transformer we sent you
- 5 Different Ranges to Choose From: Different ranges have different test currents to ensure the accuracy of test data. 3 Gears Automatic Sorting. Suitable for quickly detecting the qualified performance of multiple samples at the same time

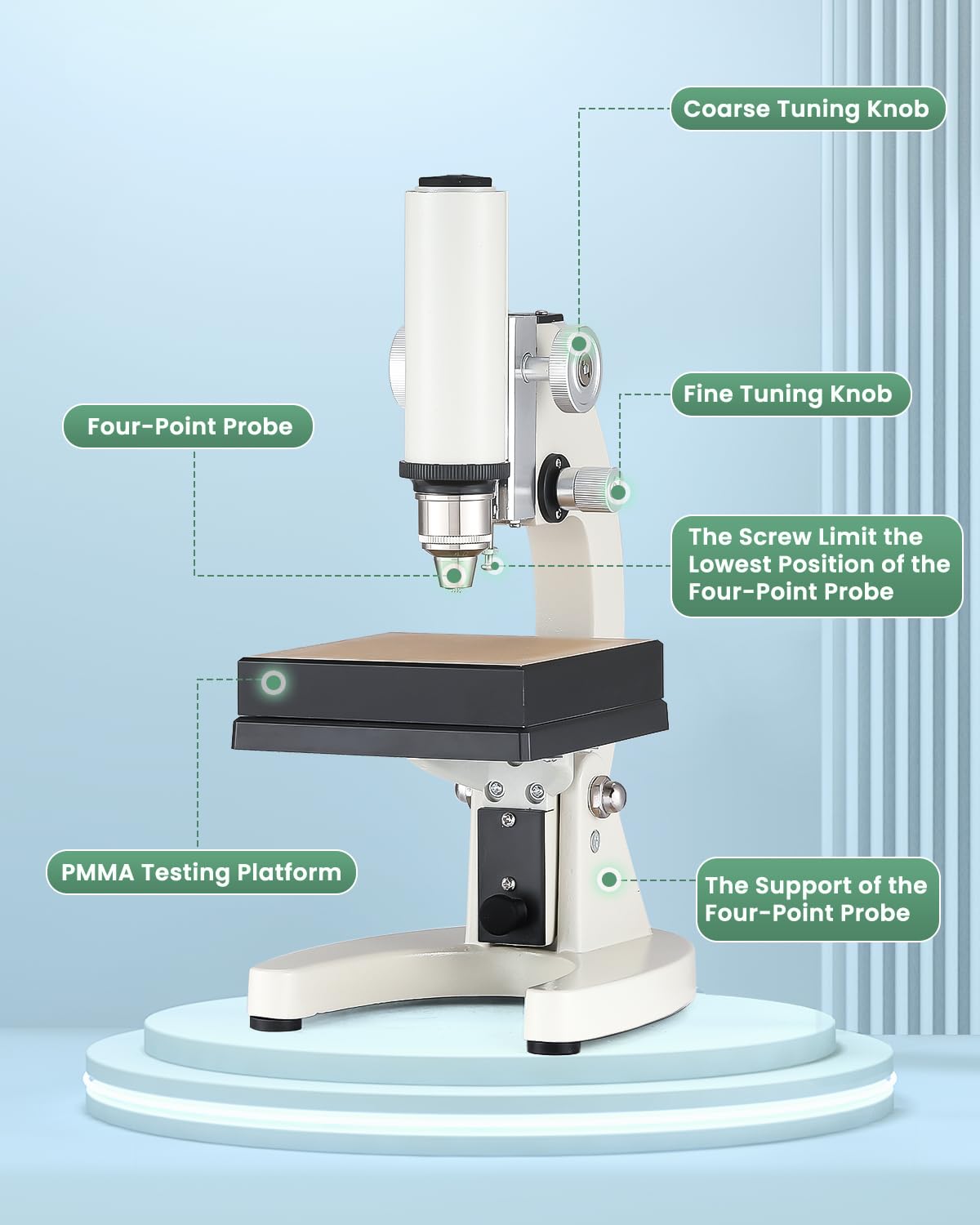

- Four-Point Probe: Ruby shaft sleeves with precise geometric dimensions to ensure constant accurate probe spacing. It controls the gap between the inner hole of the gemstone and the probe to be no more than 6 μm, ensuring a small shift rate of probe
- Specially Designed S-Shaped Cantilever Spring: Enables each probe to have independent and accurate pressure. High-precision hard alloy probe that moves stably within the gemstone guide hole, sturdy and wear-resistant
| Color | white |
|---|---|
| Brand Name | Huanyu |
| Item Weight | 8 Kilograms |
| Manufacturer | Huanyu |
| Power Source | Battery Powered |
| Specification Met | CE, RoHS, UL |
| Minimum Operating Voltage | 220 Volts |
