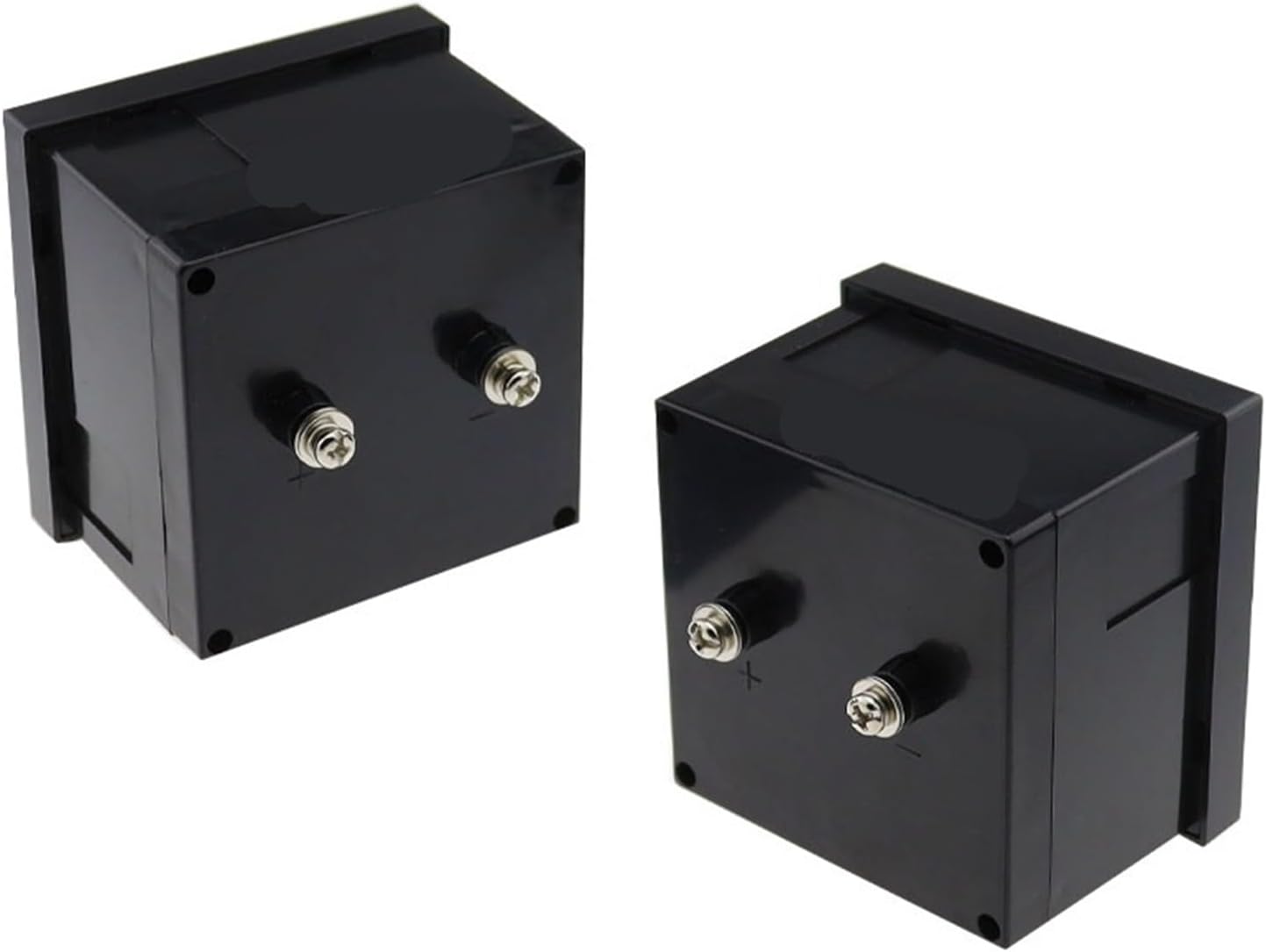

1 Piece 6L2-V AC 80 * 80MM Voltmeter(AC1000V)

Current Probes1. Model: 6L2-V3. Accuracy: 1.54. Dimensions: 80mm x80 mm x 75 mm (length * height * width)5.Package: 1 * Analog voltage and current panel meter. (with mounting nut)6. Measuring range: According to your choice. If the meter you need is more than 750V, you need to use a voltage transformer with the same constant value.First, useThis instrument is a switch type magnetoelectric instrument used to measure AC/DC current or voltage. The ambient temperature is -20～+55℃ and the relative humidity is not more than 96% (25℃).AC ammeter 0.5~50A (direct access)5A~15KA (connected via current transformer, secondary current 5A)AC voltmeter 5V~750V (direct access)DC ammeter (direct access) (50uA~10A)15A~15KA (using external separation fixed value shunt)DC voltmeter (direct access) (5V~600V)1. Damping time is less than 4S.2. Insulation strength: AC2000V (50HZ), 1 minute.1. Working position: vertical.2. The instrument should be installed firmly and must not be loose or tilted.3. The current ratio of the external current transformer must match the calibration ratio of the instrument and the accuracy level must match.Note: 1.Please allow 1-3mm differences due to manual measurement. :) 2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.Batteries Included: NoSize: 80MMX80MMWorking temperature: -20~+50Model: 6L2
